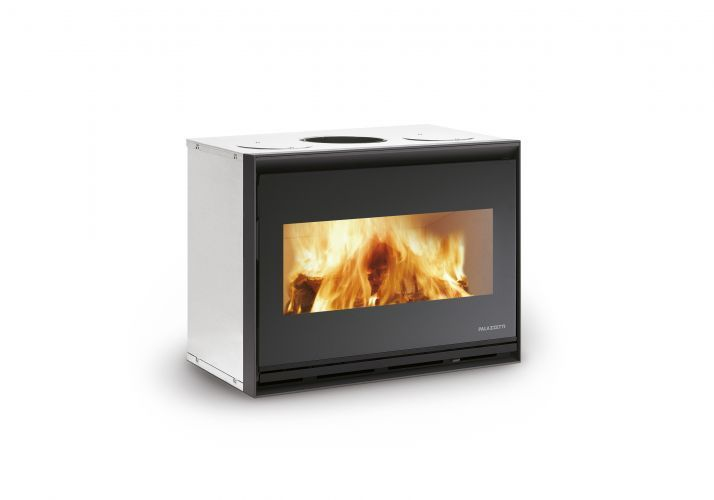

Wood-burning firebox Ecopalex 76T Glass air

76.5 x 44.5 x 56.6 cm - 130 kg
Cassette da inserimento dalle alte prestazioni. L'ingombro contenuto li rende ideali per ripristinare vecchi caminetti aperti.
Energy efficiency rating A
• natural convection insert;
• Thermofix firebox (pale-coloured, superior performance refractory cement);
• Dual Combustion system;
• the combustion air can be taken directly from outdoors;
• can be provided with a fan (680 m3/h centrifugal fan) featuring new touch control adjustment unit in glass;
• primary air regulation and glass air wash;
• for optimal efficiency, an automatic baffle increases the draught when the door is open and reduces it when it is shut;
• removable door handle.
Wood burning
Heat input 12.7 kW
Rated heat output 10.0 kW
Efficiency at rated heat output 78.7 %
Recommended quantity of firewood 3.2 kg/h
Flue gas outlet diameter ø 18 cm
